Tucker

SHOP PRESSES

Tucker EC20 20 Ton Hydraulic Shop Press

The Tucker EC-20 Hydraulic Shop Press is all-welded steel H-frame design. The sliding head ram is powered by manually operated two-speed pump and comes standard with 20 ton gauge. Each Tucker EC-20 Hydraulic Shop Press ships fully assembled. Like all Tucker Hydraulic Shop Presses, the EC-20 is made in the USA and built to last.



Tucker EC20 20 Ton Hydraulic Shop Press
Model
Pump Type
Capacity
(Tons)
Stroke
(Ram Travel)
Maximum Work
Width
Maximum Work
Height
Bed
Throat
Overall Dimensions (H X W X D)
Footprint
(W X D)
EC20
Manual
2 speed
Width
Depth
20
6 3/4"
24"
34"
17" X 7"
65" X 35" X 24"
 30" X 24"



Tucker EC40 40 Ton Hydraulic Shop Press

The Tucker EC-40 Hydraulic Shop Press is all-welded steel H-frame design. The sliding head ram is powered by manually operated two-speed pump and comes standard with 40 ton gauge. Each Tucker EC-40 Hydraulic Shop Press ships fully assembled. Like all Tucker Hydraulic Shop Presses, the EC-40 is made in the USA and built to last.
Tucker EC40 40 Ton Hydraulic Shop Press
Model
Pump Type
Capacity
(Tons)
Stroke
(Ram Travel)
Maximum Work
Width
Maximum Work
Height
Bed
Throat
Overall Dimensions (H X W X D)
Footprint
(W X D)
EC40
Manual
2 speed
Width
Depth
40
7"
32"
42 1/2"
22 1/2" X 7"
77" X 48" X 30"
 38 1/2" X 30"

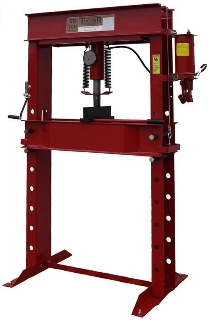

Tucker EC50 50 Ton Hydraulic Shop Press

The Tucker EC-50 Hydraulic Shop Press is all-welded steel H-frame design. The sliding head ram is powered by manually operated two-speed pump and comes standard with 50 ton gauge. Each Tucker EC-50 Hydraulic Shop Press features a auto-lock winch operated bed and ships fully assembled. Like all Tucker Hydraulic Shop Presses, the EC-50 is made in the USA and built to last.

Model
Pump Type
Capacity
(Tons)
Stroke
(Ram Travel)
Maximum Work
Width
Maximum Work
Height
Bed
Throat
Overall Dimensions (H X W X D)
Footprint
(W X D)
EC50
Manual
2 speed
Width
Depth
50
5 3/4"
36"
32"
20" X 8"
75" X 59" X 30"
42" X 30"



Tucker EC100A 100 Ton Air Hydraulic Shop Press

The Tucker EC100A Hydraulic Shop Press is allwelded steel Hframe design. The sliding head ram is powered by a Haskell air pump and comes standard with 100 ton gauge. Each Tucker EC100A Hydraulic Shop Press features a autolock winch operated bed and ships fully assembled. Like all Tucker Hydraulic Shop Presses, the EC100A is made in the USA and built to last.
Model
Pump Type
Capacity
(Tons)
Stroke
(Ram Travel)
Maximum Work
Width
Maximum Work
Height
Bed
Throat
Overall Dimensions (H X W X D)
Footprint
(W X D)
EC100A
Air
Width
Depth
100
7"
34"
37"
20" X 10"
78" X 54" X 48"
42 1/2" X 48"



Tucker EC100E 100 Ton Electric Hydraulic Shop Press

The Tucker EC-100E Hydraulic Shop Press is all-welded steel H-frame design. The sliding head ram is powered by a 1/2 HP electric pump with pendant switch control. Comes standard with 100 ton gauge. Each Tucker EC-100E Hydraulic Shop Press features a auto-lock winch operated bed and ships fully assembled. Like all Tucker Hydraulic Shop Presses, the EC-100E is made in the USA and built to last.
Tucker EC100E 100 Ton Hydraulic Shop Press
Model
Pump Type
Capacity
(Tons)
Stroke
(Ram Travel)
Maximum Work
Width
Maximum Work
Height
Bed
Throat
Overall Dimensions (H X W X D)
Footprint
(W X D)
EC100E
Electric
Width
Depth
100
7"
34"
37"
20" X 10"
78" X 58" X 48"
 42 1/2" X 48"

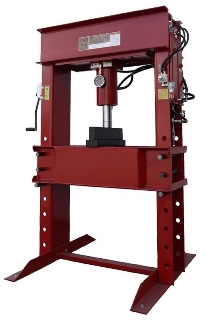

Tucker EC150A 150 Ton Air Hydraulic Shop Press

The Tucker EC-150A Hydraulic Shop Press is allwelded steel H-frame design. The sliding head ram is powered by a Haskell air pump and comes standard with 150 ton gauge. Each Tucker EC-150A Hydraulic Shop Press features a auto-lock winch operated bed and ships fully assembled. Like all Tucker Hydraulic Shop Presses, the EC-150A is made in the USA and built to last.
Model
Pump Type
Capacity
(Tons)
Stroke
(Ram Travel)
Maximum Work
Width
Maximum Work
Height
Bed
Throat
Overall Dimensions (H X W X D)
Footprint
(W X D)
EC150A
Air
Width
Depth
150
7"
36"
30"
20" X 12"
82" X 57" X 48"
46" X 48"

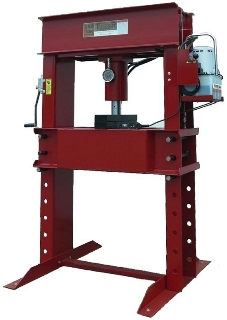

Tucker EC150E 150 Ton Electric Hydraulic Shop Press

The Tucker EC-150E Hydraulic Shop Press is all-welded steel H-frame design. The sliding head ram is powered by a 1/2 HP electric pump with pendant switch control. Comes standard with 150 ton gauge. Each Tucker EC-150E Hydraulic Shop Press features a auto-lock winch operated bed and ships fully assembled. Like all Tucker Hydraulic Shop Presses, the EC-150E is made in the USA and built to last.
Model
Pump Type
Capacity
(Tons)
Stroke
(Ram Travel)
Maximum Work
Width
Maximum Work
Height
Bed
Throat
Overall Dimensions (H X W X D)
Footprint
(W X D)
EC150E
Electric
2 speed
Width
Depth
150
7"
36"
30"
20" X 12"
82" X 57" X 48"
46" X 48"
